TOPIC: Reading MU cars, Paint and other things

Reading MU cars, Paint and other things 10 years 2 weeks ago #2996

  • Rob
  • Rob's Avatar
  • OFFLINE
  • Road Foreman of Engines
  • Posts: 393
  • Thank you received: 57
On Microsoft Word - Take a look at "Elephant" Steve Gilbert, who has lettered more than one piece of Reading equipment has referred to this. Although looking at it I would think freight, not so much passenger. In fact not even at all for passenger unless you can figure out how to stretch it.

I would communicate with him or someone at the RCT&HS if I were looking to letter something in 1=1 scale. They have access to stencils and or letter diagrams to create stencils.
The administrator has disabled public write access.

Reading MU cars, Paint and other things 10 years 2 weeks ago #2997

Maybe I can help you. I had a NJCB Brass set of Reading MU's pro painted last year. I wanted the most prototypical lettering I could find. The BCW Railworks decals were not very sharp and nothing else quite fit the bill, so I made my own. I started with a scan of the actual car stencil which full size. I then imported it into Corel Draw and overlaid it with the Extended Railroad Roman Font. There are many differences in the letters. Particularly the R and the G. I tweaked the font until it matched the letters exactly. Then I resized it to HO scale and printed the lettering in gold on an ALPS printer. If you would like I would be happy to print the lettering for you and some Reading heralds in white the next time I print decals. However, I'm pretty sure that the Blueliner lettering and heralds were done in a light creme to match the window bands. I cannot print a light creme color without some dithering which makes the thin strokes on the letters print without satisfactory crispness. I have also printed the silver and black "WATCH YOUR STEP" decals, but the lettering is very hard to read.
BTW - the MU's came out very nice and I installed lighting and DCC with sound (Pennsy MP54 was as close as I could manage). If I can ever figure out how to post a picture on the forum I will.
The administrator has disabled public write access.

Reading MU cars, Paint and other things 10 years 2 weeks ago #2998

I would definitely be interested in some of those decals if you do print them up!
Christian Brown

Electric Modeler
The administrator has disabled public write access.

Reading MU cars, Paint and other things 10 years 1 week ago #3035

  • t1nut
  • t1nut's Avatar
  • OFFLINE
  • Road Foreman of Engines
  • Posts: 323
  • Thank you received: 55

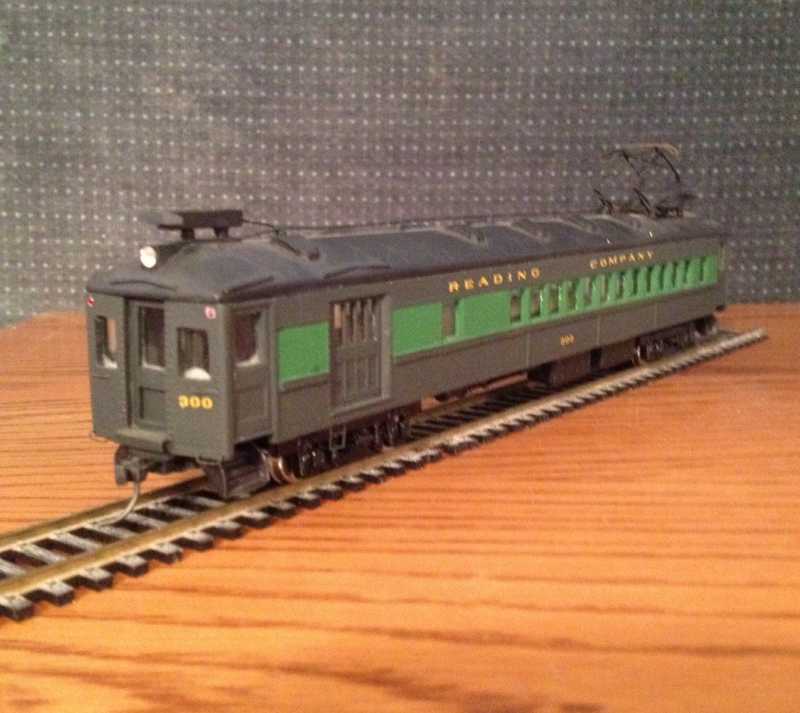

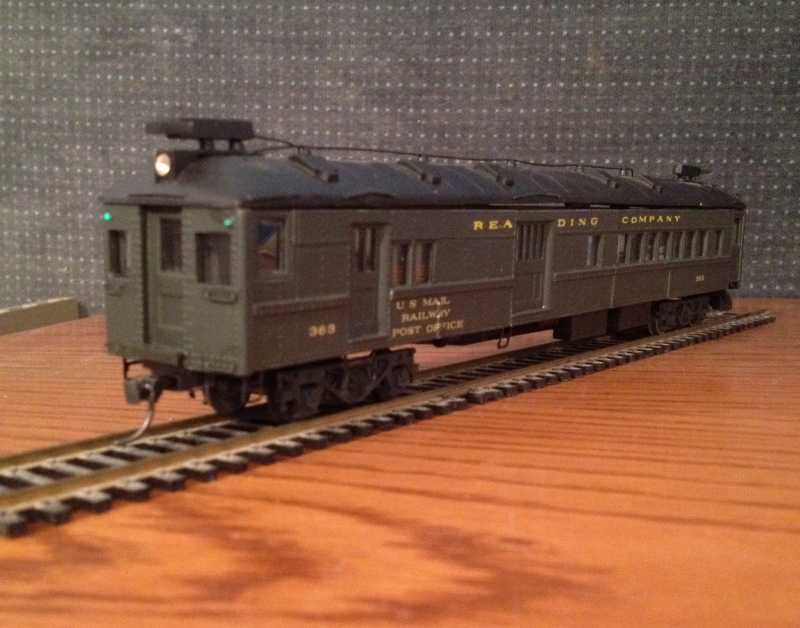

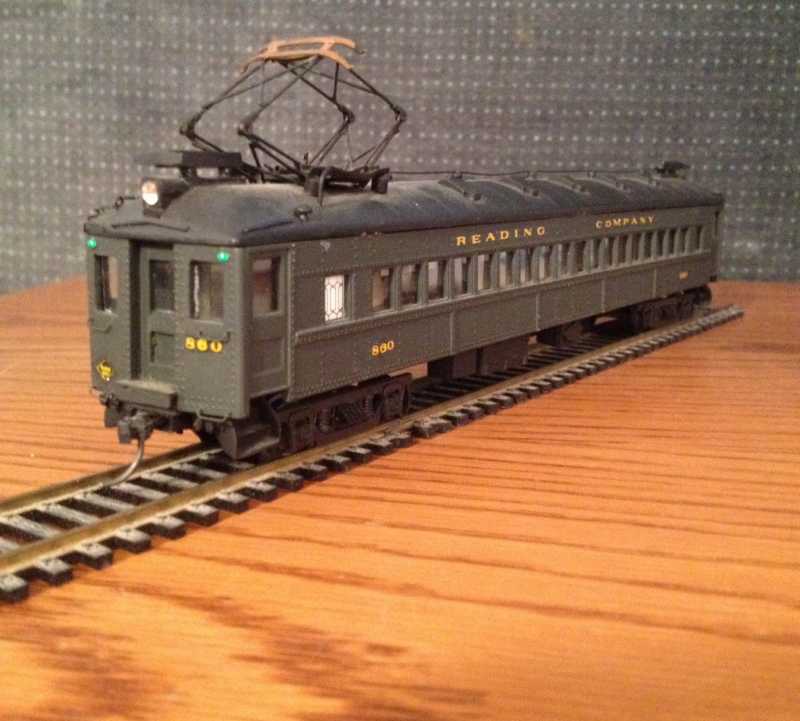

Here are some photos of MU's that I kitbashed from Bethlehem Car Works kits. The Taylor trucks are old Eastern Car Works kits(no longer in business)
Butch Curll
The administrator has disabled public write access.
The following user(s) said Thank You: Robin, jdamelio

Reading MU cars, Paint and other things 10 years 1 week ago #3036

  • Robin
  • Robin's Avatar
  • OFFLINE
  • Conductor
  • Posts: 173
  • Thank you received: 47
Really nice job on the MUs, Butch. Are they powered?

I remember hearing about the RPO combine from my father. He rode the Reading to commute from Doylestown to Temple U and Penn Law School during and after WWII (he was 4F as a result of childhood polio).
The administrator has disabled public write access.

Reading MU cars, Paint and other things 10 years 1 week ago #3038

  • t1nut
  • t1nut's Avatar
  • OFFLINE
  • Road Foreman of Engines
  • Posts: 323
  • Thank you received: 55
they are not powered. I was going to use the Northwest shortlines midget,because they had one with a 8ft. wheel base. but they are not made anymore. there were 2 RPO MU's Reading converted them to straight combines in 1956.
Butch Curll
The administrator has disabled public write access.
