This section of The Interchange provides a space where members of the Reading Modeler community can showcase their Reading modeling efforts. If you've got a project that you'd like to share, start a new topic and "show and tell" the group how you did it!

TOPIC: N scale Reading K1

N scale Reading K1 5 years 1 week ago #6390

  • Chris_L
  • Chris_L's Avatar
  • OFFLINE
  • Fireman
  • Posts: 59
  • Thank you received: 7

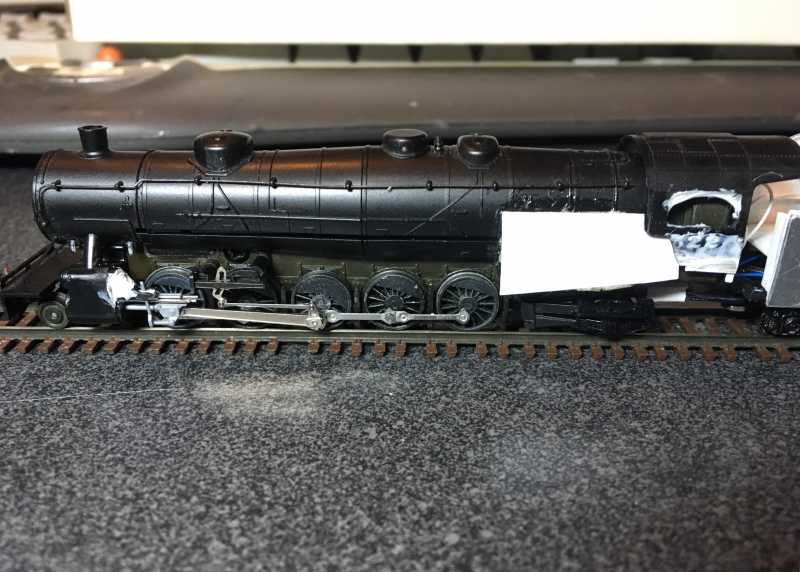

I have a base for the n-scale K1 done now just need to pick a number and add the details. The mechanism is the concor heavy 2-10-2 modified with a scratchbuilt tender.

Cab was knotched for the firebox and styrene laid over the exsisting styrene. Valve gear was changed to Kato GS4 gear.

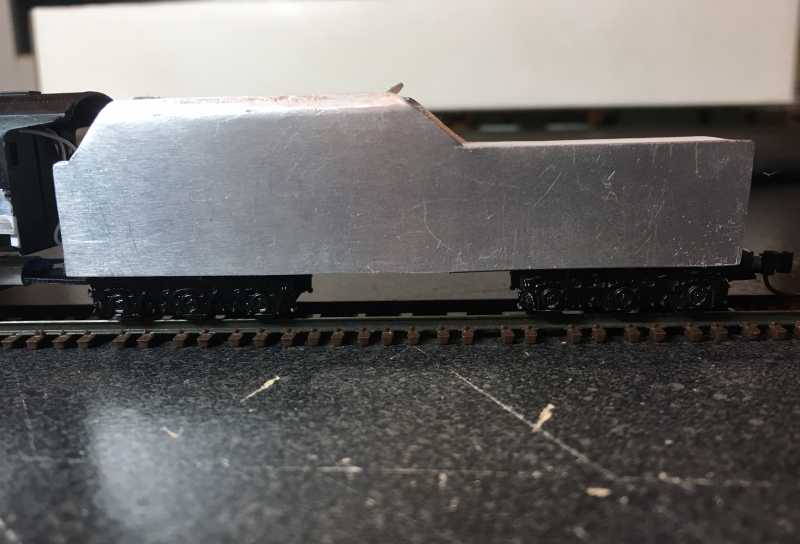

Tender has 12 wheel pickup and a new drawbar that provides good electrical contact. Tender was an auxiliary tender from the Kato GS4 set stretched with styrene. Good news is the exsisting bronze wipers are long enough.

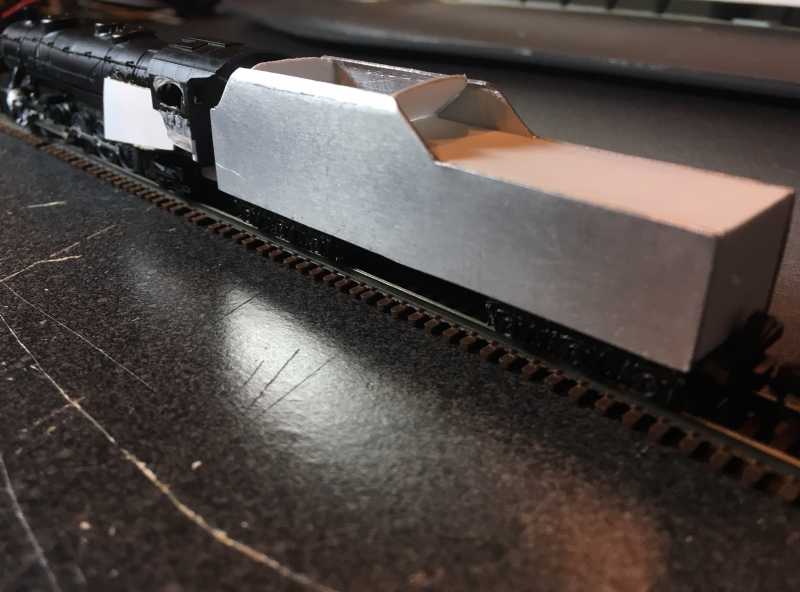

Tender shell has aluminum sheets on a styrene frame.
Runs good now need to add the air pumps, headlight and piping details.





Last Edit: 5 years 2 days ago by Chris_L.
The administrator has disabled public write access.

N scale Reading K1 4 years 4 months ago #6504

  • Chris_L
  • Chris_L's Avatar
  • OFFLINE
  • Fireman
  • Posts: 59
  • Thank you received: 7
I've been working on the layout here and there a bit but started to get back to engines now that fall is setting in.

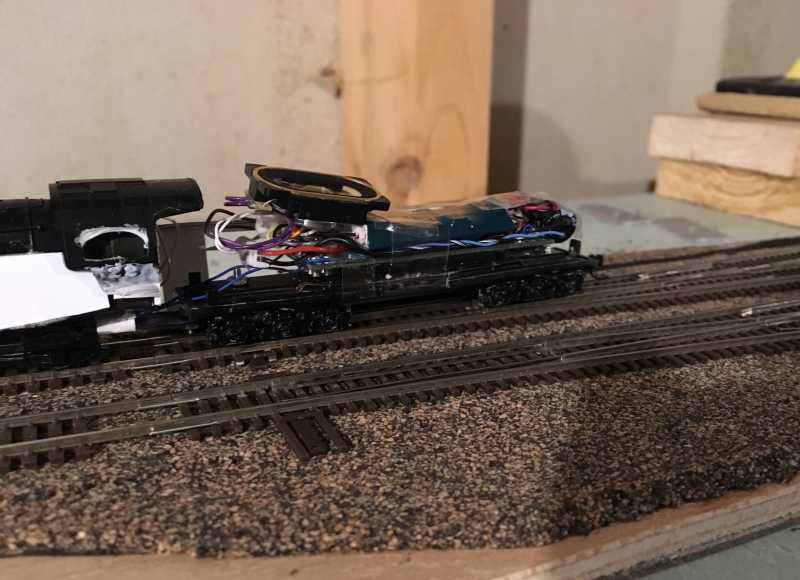

Added a TCS wowsound 101 steam decoder to the engine. It's sitting on and going through the old concor 8 pin NMRA socket but that was installed before I decided to go full sound and DCC on all the engines so it will come out to make more room for the speaker and backup light. Need to make a speaker enclosure also but the sound is incredible and TCS has a selection of 5 or 6 Reading specific whistles!

Last Edit: 4 years 4 months ago by Chris_L.
The administrator has disabled public write access.

N scale Reading K1 4 years 4 months ago #6505

  • HoboPiker
  • HoboPiker's Avatar
  • OFFLINE
  • Conductor
  • Posts: 227
  • Thank you received: 53
Impressive project.
The administrator has disabled public write access.
The following user(s) said Thank You: Chris_L
