Willow and Noble St Frieght Station modeling info
This board is the place where questions and information specific to MODELING the Reading Company, its equipment and operations can be shared - questions like "What was the window arrangement of AF Tower in Alburtis?" and "What color paint do YOU use to paint the Reading's cream-and-brown buildings?" We also want to hear about YOUR Reading modeling projects!

TOPIC: Willow and Noble St Frieght Station modeling info

Willow and Noble St Frieght Station modeling info 7 years 1 month ago #5755

  • RDG1519
  • RDG1519's Avatar
  • OFFLINE
  • Fireman
  • Posts: 56
  • Thank you received: 16
The Willow and Noble Sts yard and freight stations are the extreme south (west) end of the North Penn or Bethlehem Branch.
I am modeling a small piece of this as the start of my efforts to model the North Penn from this small yard though Fair Hill Junction and than into Erie Ave Yard.
I am well into the model of Freight Station 6 and am modeling it based on info from photos of Locomotives parked near it. I do not have drawings or plans or photos that show this as the main subject. Only glimpses of corners etc, etc. It is similar to Coral Street but with the side pieces that protect the platforms from wind driven rain that is typical of many Reading freight stations.
Does anyone have pictures of this station or drawings? I have the general layout of this structure from the Sanford Insurance Map Databases. This station is located on the East side of North Front St between Willow Street and Noble Street. There are other ones as well, as this was a busy area in its day.
Any help would be appreciated.
Thanks, Chris
Chris
Great Grandson of John Kiefer Engineman RDG 1894 to 1932
Member RCT&HS, ARHS, West Jersey Chapter NRHS
The administrator has disabled public write access.
The following user(s) said Thank You: HoboPiker

Willow and Noble St Frieght Station modeling info 7 years 1 month ago #5757

  • nmueller4
  • nmueller4's Avatar
  • OFFLINE
  • Apprentice
  • Posts: 17
  • Thank you received: 9

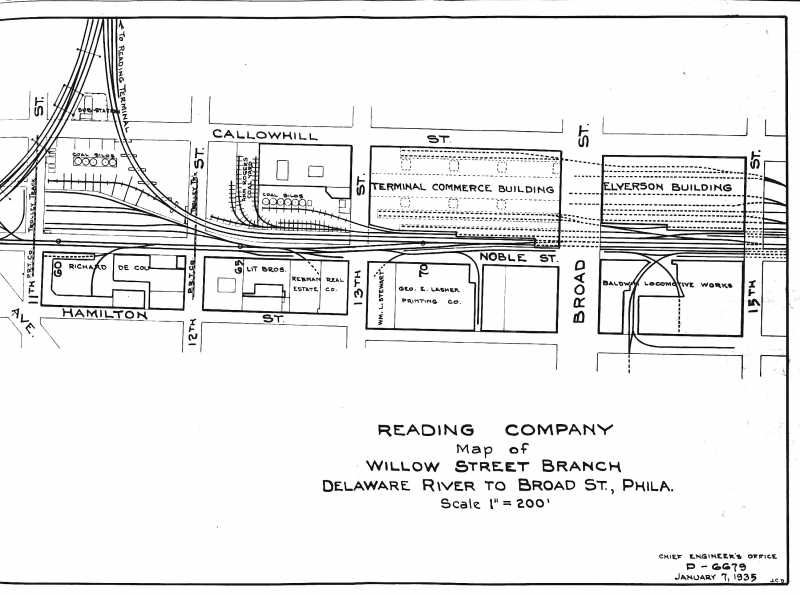

I don't have detailed info. Attached is a portion of a 1935 Reading Company map of the Willow Street Branch. Other resources are:|

HistoricMapWorks.com
HistoricAerials.com
PhillyHistory.org

Norman
Attachments:
The administrator has disabled public write access.
The following user(s) said Thank You: RDG1519

Willow and Noble St Frieght Station modeling info 7 years 1 month ago #5758

  • RDG1519
  • RDG1519's Avatar
  • OFFLINE
  • Fireman
  • Posts: 56
  • Thank you received: 16
Norman, What a great map.
Are there similar ones showing north Front st and going up to 2 nd and Berks?
Chris
Chris
Great Grandson of John Kiefer Engineman RDG 1894 to 1932
Member RCT&HS, ARHS, West Jersey Chapter NRHS
The administrator has disabled public write access.

Willow and Noble St Frieght Station modeling info 7 years 1 month ago #5760

  • nmueller4
  • nmueller4's Avatar
  • OFFLINE
  • Apprentice
  • Posts: 17
  • Thank you received: 9

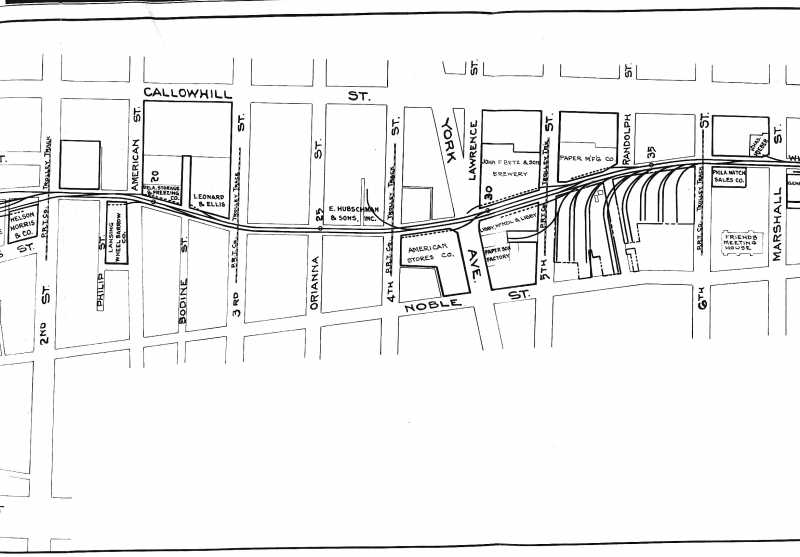

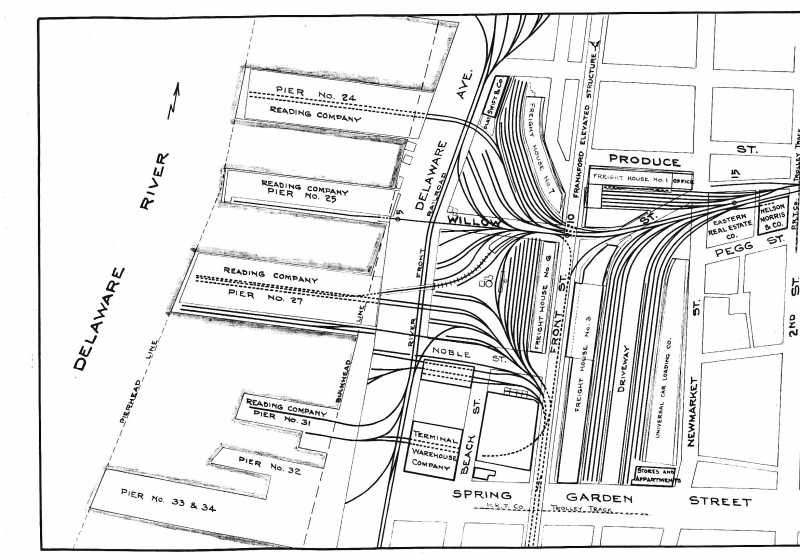

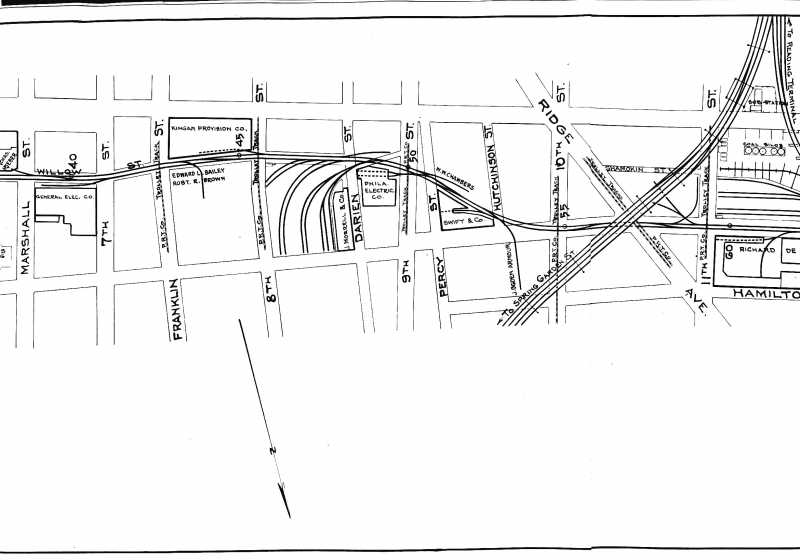

I only have Willow Street. Here is the rest of the set.
The administrator has disabled public write access.
The following user(s) said Thank You: JoannaBill, HoboPiker

Willow and Noble St Frieght Station modeling info 7 years 1 month ago #5761

  • RDG1519
  • RDG1519's Avatar
  • OFFLINE
  • Fireman
  • Posts: 56
  • Thank you received: 16
These are fantastic!! Thanks,
Chris
Chris
Great Grandson of John Kiefer Engineman RDG 1894 to 1932
Member RCT&HS, ARHS, West Jersey Chapter NRHS
The administrator has disabled public write access.

Willow and Noble St Frieght Station modeling info 7 years 1 month ago #5762

  • JoannaBill
  • JoannaBill's Avatar
  • OFFLINE
  • Road Foreman of Engines
  • Posts: 422
  • Thank you received: 63
Those truly are great maps. Even though I don't have an interest in modeling this area, I appreciate the clarification the maps give.
The administrator has disabled public write access.
