TOPIC: N scale Reading T1

N scale Reading T1 5 years 3 weeks ago #6408

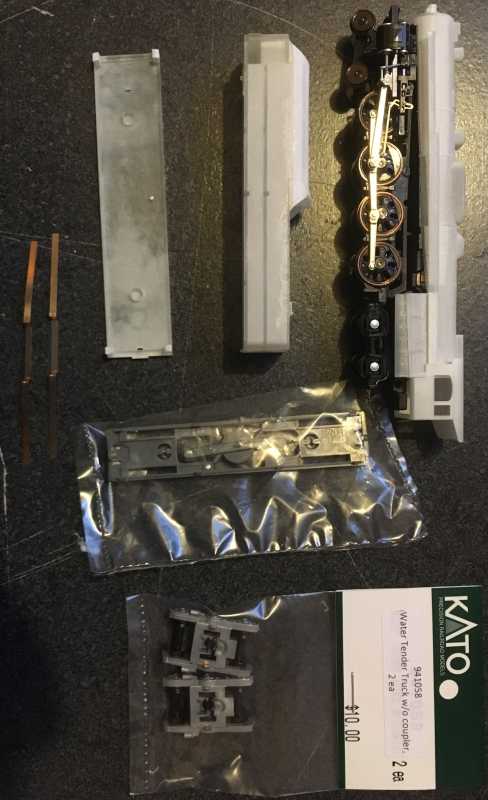

Chris_L OFFLINE Fireman Posts: 59 Thank you received: 7	This model uses a Kato FEF3 mechanism and 3D printed boiler and tender from shapeways. The tender is like the K1 i showed earlier and used the GS4 aux water car frames and trucks and is lengthened.
	Last Edit: 5 years 3 weeks ago by Chris_L. The administrator has disabled public write access.

N scale Reading T1 5 years 3 weeks ago #6410

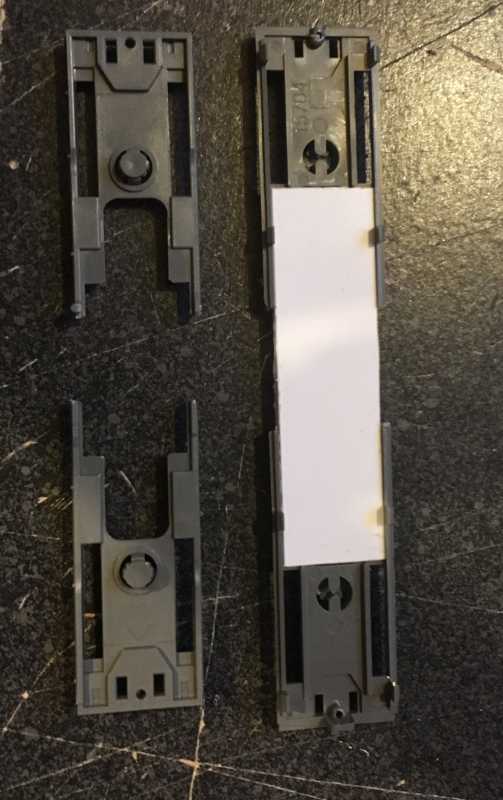

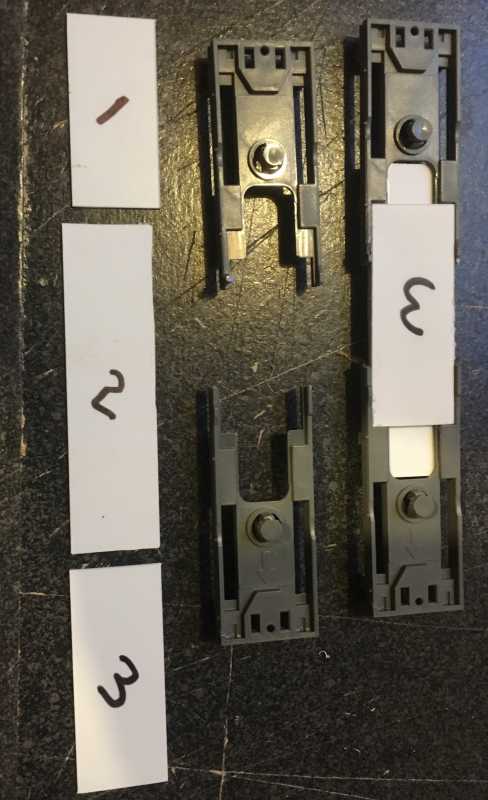

Chris_L OFFLINE Fireman Posts: 59 Thank you received: 7	Here is the construction for lengthening the Kato water tender, three interlocking pieces of styrene.
	Last Edit: 5 years 3 weeks ago by Chris_L. The administrator has disabled public write access.

N scale Reading T1 5 years 2 weeks ago #6415

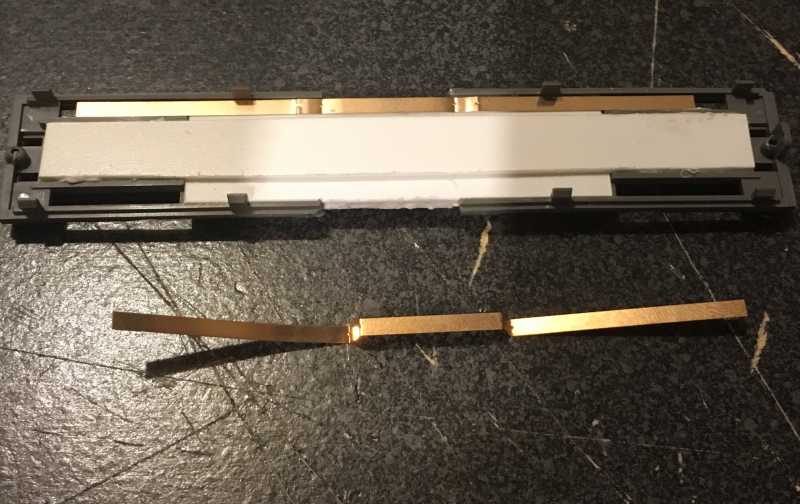

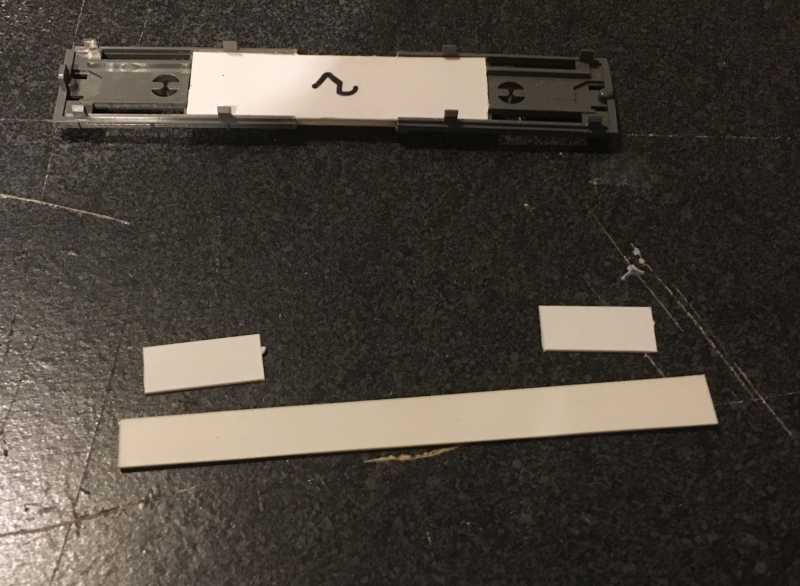

Chris_L OFFLINE Fireman Posts: 59 Thank you received: 7	Need a long piece of styrene and two shorter ones. The bronze wipers need straightened and the square openings need widened I used a small file and exacto.
	Last Edit: 5 years 2 weeks ago by Chris_L. The administrator has disabled public write access.

N scale Reading T1 5 years 2 weeks ago #6418

Turboboost910
OFFLINE
Conductor
Posts: 250
Thank you received: 17

Very nice! I am about to order that shell as well. How does it fit? The shapeways picture is kinda vague, does it match pretty well? Seems like the bottom half might leave something to be desired, but since you have the shell in hand, maybe you can shed some light on it. I have a Con Cor daylight that i've been using for a complete scratch build years ago before this shell became available, and was considering seeing if it fit that mech a swell before i toss it for the FEF.

The administrator has disabled public write access.

N scale Reading T1 5 years 2 weeks ago #6421

Chris_L OFFLINE Fireman Posts: 59 Thank you received: 7	Might fit the concor not sure it fits the Kato fef pretty much perfectly.
	The administrator has disabled public write access.

N scale Reading T1 5 years 2 weeks ago #6422

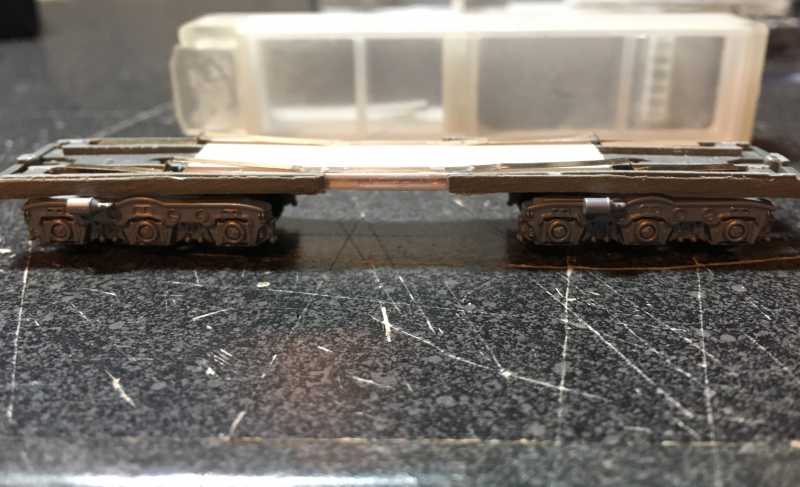

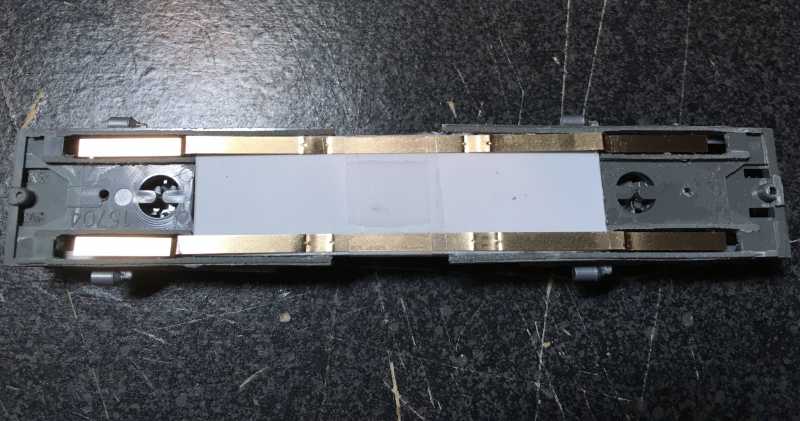

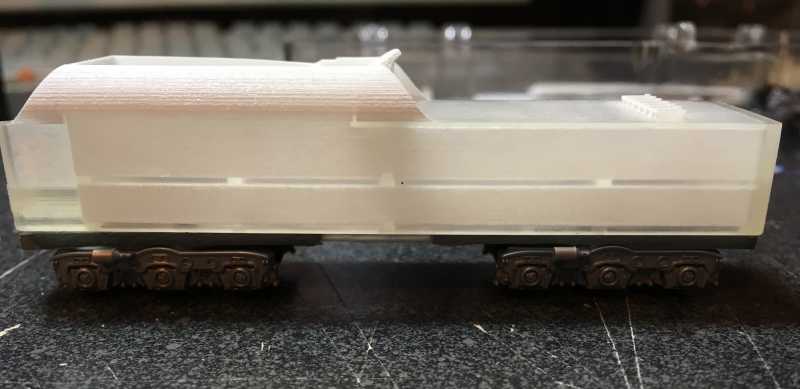

Chris_L OFFLINE Fireman Posts: 59 Thank you received: 7	Bend the contact strips so they sit about midway in the subframe cutouts. I used some packing tape in the center to secure them. Test fit the trucks and shell, pushing and turning the trucks you should see the contacts move smoothly up and down. Sit the tender shell on the subframe to see if more sanding is needed on subframe top.
	Last Edit: 5 years 2 weeks ago by Chris_L. The administrator has disabled public write access.
